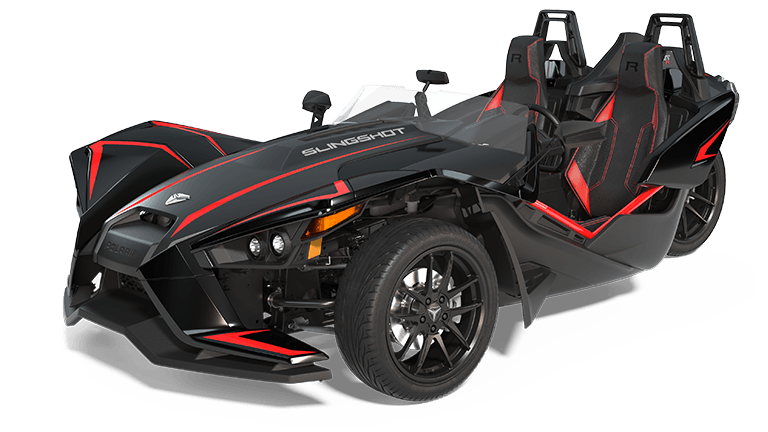

Slingshot R Stealth Black - AutoDrive

DOWNLOAD OWNER'S MANUAL

POWERTRAIN AND PERFORMANCE

Bore x Stroke
93 mm x 73.5 mm
Compression Ratio
11.5:1
Displacement
1,997 cc
Engine Type
Prostar 2.0L 4 Cylinder
Fuel System
Multiport Injected
Fuel Type
91 octane or higher
Peak Power
178 HP @ 8,500 RPM
Rev Limit (RPM)
8,500 RPM
Time From Idle to Redline (In Neutral)
0.8 Seconds
Valve Train
DOHC

DIMENSIONS / CAPACITIES

Curb Weight
1654 lb (750.24 kg)
Fuel Capacity
9.77 gal (37.1 L)
Ground Clearance
5.4 in (137.3 mm)
Max Wet Weight
1,749 lb
Overall Vehicle Height
51.9 in (1,318 mm)
Overall Vehicle Length
149.6 in (3,800 mm)
Overall Vehicle Width
77.9 in (1,980 mm)
Track Width
69.1 in (1,755 mm)
Wheelbase
105 in (2,667 mm)

BRAKES

Front Brake Rotors
Vented cast iron rotor, aluminum center hub, 298 mm diameter
Rear Brake Rotors
Vented cast iron rotor, aluminum center hub, 298 mm diameter

SPECIFICATIONS

Actuation
Rack-and-pinion
Battery
30AH, 12V, 400 CCA
ESC (Electronic Stability Control)
Standard
Headlight
LED High & Low Beam
Indicator Lights
LED
License Plate Light
LED
Tail/Brake Light
LED
Traction Control
Standard
Turn Signals
LED

TIRES AND WHEELS

Front Tire Size
225 / 45R18
Front Tire Type
Kenda SS-799
Front Wheel Size
18x7.5
Front Wheel Type
Forged Aluminum
Rear Tire Size
305 / 30R20
Rear Tire Type
Kenda SS-799
Rear Wheel Size
20x11.0
Rear Wheel Type
Forged Aluminum

TRANSMISSION

Bevel Drive Ratio
2.824:1
Clutch Type
Dry, Single Plate, Hydraulically Actuated
Final Drive Ratio
1.771:2
Final Drive Type
Carbon Fiber Reinforced Belt, 36 mm x 147 T
Gear Ratio (1st)
3.251:1
Gear Ratio (2nd)
1.955:1
Gear Ratio (3rd)
1.310:1
Gear Ratio (4th)
1.000:2
Gear Ratio (5th)
0.753:1
Gear Shift Pattern (Manual)
N/A
Reverse Gear Ratio
3.180:1
Shock Absorber
Twin Tube Gas Charged Coil Overs
Suspension Type
Independent, Double Wishbone with Forged Aluminum Control Arms
Transmission Type
Hydraulically Actuated Automated Manual (AutoDrive) 5 Speed Synchromesh w/ Reverse

FEATURES AND WARRANTY

12v DC Outlets
2
Color / Graphics
Stealth Black, Miami Blue
Connected Services
Standard with 1 Year Coverage
Cruise Control
Standard
Factory Warranty
2 Years, Unlimited Miles
Gauges
Dual Sweep LED Backlit Gauge with Configurable LCD Display
Gear Shift Lever Finish
N/A
Ignition
Proximity Key with Keyless Start
Infotainment
7" Display Powered by RIDE COMMAND w/Navigation and Connected Services, Premium Rockford Fosgate Audio and Back-up Camera
Integrated Steering Wheel Controls
Standard
Interior Trim Color
Gloss Black
Paint Scheme / Graphics
Premium 2-Tone Paint with Full Body Graphics
Passive Security System
Standard
Rockford Fosgate® 100w Audio
Standard
Steering Wheel Accent Stitching
Turbo Silver Euro Stitch
Steering Wheel Materials
Smooth & Perforated Full-Grain Leather
Steering Wheel Type
Leather Wrapped Flat Bottom Steering Wheel
Turn by Turn Navigation
Standard with 1 Year of Map Updates
USB Ports
2
Vehicle Drive Modes
Standard
Windscreen
7.5 in. Standard Height Tinted
